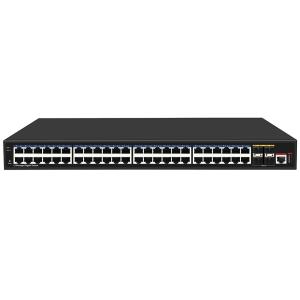

48 Port Gigabit L3 Managed Network Switch With 10G Fiber Uplinks Realtek Based

  • 1
  • 2
  • 3

Brand Name : Olycom

Model Number : OM4X4800GW

Certification : CE FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, PayPal

Supply Ability : 1000Pcs per month

Delivery Time : 5~8 working days

Packaging Details : 1 piece in a box, 4.7 gross weight

Product Name : 48 Port Managed Network Switch

Fiber Speed : 4*10G uplinks

Copper Speed : 10/100/1000Mbps

Feature : L3 managed, non-PoE

Power input : Single AC100V~240V

Fanless : Yes

Contact Now

Olycom 52-Port Gigabit Smart Managed Switch with 10G Uplinks

Key Features of L3 Managed Switch

  • Support IEEE 802.1d,IEEE 802.1w,IEEE 802.1s,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ae standards ;
  • L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；
  • Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control(802.3ah OAM); Support IPV4/IPV6, RIP, OSPF
  • Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
  • Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
  • Surge Protection: General 6KV(level B), ESD 8KV air, 6KV contact(level C)

48 Port Gigabit L3 Managed Network Switch With 10G Fiber Uplinks Realtek Based

Specification of 10G Fiber Switch

Input/output Port

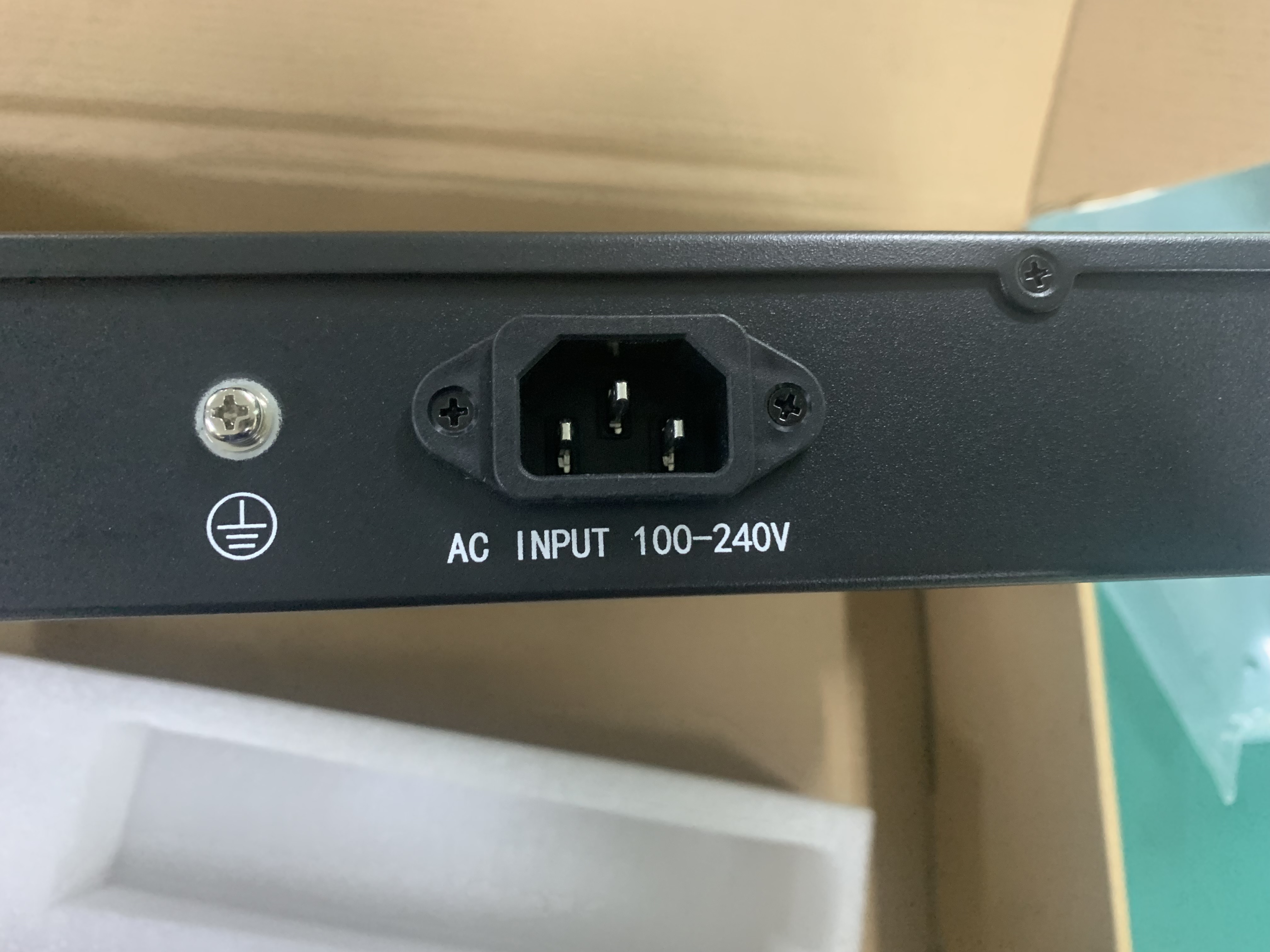

AC INPUT AC100-240V,50/60Hz
Ethernet Port

48 * 10/100/1000Mbps RJ45 Port

4 * 10G SFP+ Port

1 * RJ45 Console Port

1 * USB Port
Performance
Bandwidth 176Gbps
Packet Buffer Memory 131Mpps
DDR SDRAM 512MByte
Flash Memory 32MByte
Package Cache 16Mbit
MAC Address 32K
Jumbo frame 10Kbytes
VLANs VLAN range 1-4094, with a maximum active VLAN of 4K
Standard
Network Protocols

IEEE 802.3: Ethernet MAC Protocol

IEEE 802.3i: 10BASE-T Ethernet

IEEE 802.3u: 100BASE-TX Fast Ethernet

IEEE 802.3ab: 1000BASE-T Gigabit Ethernet

IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)

IEEE 802.3ae: 10G Ethernet (optical fiber)

IEEE 802.3az: Energy Efficient Ethernet

IEEE 802.3ad: Standard method for performing link aggregation

IEEE 802.3x: Flow control

IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)

IEEE 802.1q: VLAN Bridge Operation

IEEE 802.1x: Client/Server Access Control and Authentication Protocol

IEEE 802.1d: STP

IEEE 802.1s: MSTP

IEEE 802.1w: RSTP
Industry Standard

EMS: EN61000-4-2 (ESD)

EN61000-4-5 (Surge)
Network Media

10BASE-T: Cat3,4,5 or above UTP(≤100 M)

100BASE-TX: Cat5 or above UTP(≤100 M)

1000BASE-TX: Cat5 or above UTP(≤100 M)

Multi-mode Fiber: 50/125,62.5/125,100/140um

Single-mode Fiber: 8/125,8.7/125,9/125,10/125um
Certification
Safety Certificate CE,FCC,RoHS
Environmental Standards
Working Environment

Operating temperature: -10~50°C

Storage temperature: -40~70°C

Operating Humidity: 10%~90%, No condensation

Storage Humidity: 5%~95%, No condensation
Function Indication
Indicator Light PWR(Power indicator), SYS(System lights), Link/ACT(Link light/data light)

Software Function

L3 Function
IPv4 IPv4 VLAN Interface
IPv4 Static Routes
ARP
IPv6 IPv6 VLAN Interface
IPv6 Static Routes
IPv6 ND
RIP V1/V2
OSPF Router-ID
Authentication
v2

L2 Function
Port Port Switch
Port Description
Port Speed
Port Duplex
Port Flow Control
Jumbo, Up to 10K
Support 10G/2.5G (2023.3.2)
Fiber Module(DDM)
Link Aggregation Supports load balance policy;
Base on MAC and IP-MAC
Static and Dynamic Group
Supports LACP
Up to 8 groups
Storm Control Boardcast
Unknown Multicast
Unknown Unicast
Port Mirroring One to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups
Port Security MAC Address Constraints
Port Security MAC Address
Protect/Restrict/Shutdown
Port Isolation
Port Rate-limit
Loopback Detection
VLAN Access/Trunk/Hybrid
VLAN Tunnel (Q-in-Q Tunnel)
Congurable VID from 1 - 4094;
Max. 4K static VLAN groups
Voice VLAN
MAC VLAN
Surveillance VLAN
Protocol VLAN
GVRP
MAC Address Dynamic Address
Static Address
Filtering Address
Spnning Tree Protocol STP/RSTP/MSTP
BPDU Filter
BPDU Guard
Edge Port
ERPS Only SFP port
ALL Port
LLDP LLDP
LLDP MED
Multicast IGMP Snnoping
IGMP V1/V2/V3
Router Port
Static IGMP group address
IGMP groups filtering
Querier
MLD Snooping
MVR
QoS Traffic classification based, Strict priority and WRR
Port Priority
802.1P Priority
IP TOS Priority
IP DSCP Priority
Supports up to 8 queues per port
Priority Remarking
Services
DHCP DHCP Server
IP Pool
Static Binding
DHCP Relay
Option 43
Access Protocol HTTP
HTTPS
Telnet
SSHv2
Manager ACL
Session Timeout
Password Retry Count
Silent Time
Security
AAA RADIUS
TACACS+
802.1X
Base on port/MAC/local/WEB
DHCP Snooping Global/VLAN
Option 82
Circuit ID
IP Source Guard
Dynamic ARP Inspection
DoS
ACL MAC ACL
IPv4 ACL
IPv6 ACL
Diagnostics
Syslog Logging Message
Remote Server
Ping
Traceroute
Copper Test
UDLD
Management
Manager Access Console
HTTP/HTTPS
Telnet
SSH
SNMP
Manager IP Static Address
DHCP Client
Supports IPv4 and IPv6 address
Manager VLAN
DNS
Time Synchronization SNTP
Manual Time
SNMP V1/V2C/V3
Community
V3 User
Group
Trap Host
SNMP MIB RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2863 Interface MIB
LLDP
Private MIB
RMON Statistics
History
Event
Alarm
User
Firmware Double Image; Swap between Active and Alternate firmware image.
Firmware Upgarde
Configuration Upload and download
Upload and download via USB interface
Save
Restart
Factory Defaults
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2

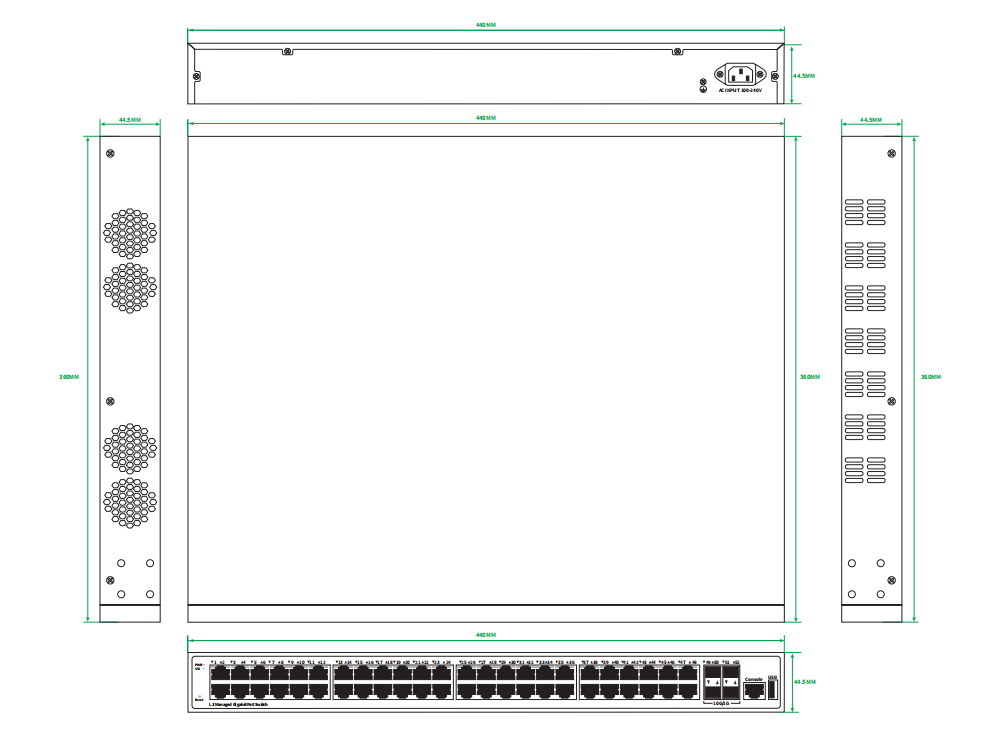

Dimension

48 Port Gigabit L3 Managed Network Switch With 10G Fiber Uplinks Realtek Based

Physical Specifications
Product Information

Product Dimensions: 440*280*44mm

Package Dimensions: 500*365*85mm

Product N.W: 3.87KG

Product G.W: 4.70KG
Packing Information

Carton Dimensions: 520*445*385mm

Packing Quantity: 5psc

Packing weight: 24.6KG
Voltage

Input Voltage: AC100-240V/50-60Hz

Power supply: 12V8A
Power Consumption Maximum 46W
Packing list

Ethernet switch: 1 Set

Instruction manual: 1 PCS

Certificate, warranty card: 1 PCS

Power cord: 1PCS

Serial cable: 1PCS

Rack ear: 1 Pair

Accessories

OSPL1G05D 1000BASE-SX
OSPL1G06D 1000BASE-SX (1310nm)
OSPL1G20D 1000BASE-LX
OSPL1G40D 1000BASE-EX
OSBL1G20D-35 1000BASE-BX-U (TX 1310 RX1550)
OSBL1G20D-53 1000BASE-BX-D (TX 1550 RX1310)
OSPLXG05D 10GBASE-SR
OSPLXG06D 10GBASE-SR (1310nm)
OSPLXG10D 10GBASE-LR
OSPLXG40D 10GBASE-ER
OSBLXG20D-23 10GBASE-BX-U (TX 1270 RX1330)
OSBLXG20D-32 10GBASE-BX-U (TX 1330 RX1270)

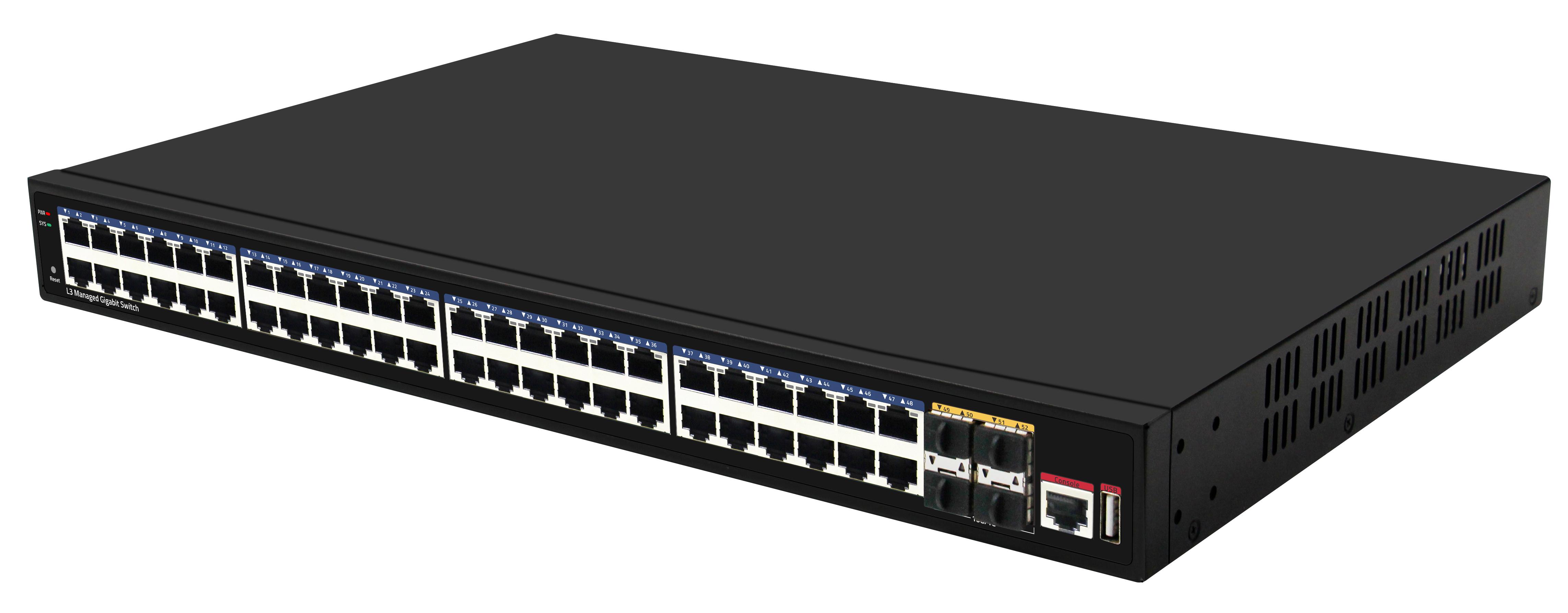

Product Photos

48 Port Gigabit L3 Managed Network Switch With 10G Fiber Uplinks Realtek Based

48 Port Gigabit L3 Managed Network Switch With 10G Fiber Uplinks Realtek Based

48 Port Gigabit L3 Managed Network Switch With 10G Fiber Uplinks Realtek Based
