10G Cisco SFP+ Transceiver Multimode LC 850nm 300m DDM 10GBase-SR

Brand Name : Olycom

Model Number : OSPLXG05D

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1Pcs

Price : Negotiable

Payment Terms : T/T, Paypal

Supply Ability : 3000Pcs per week

Delivery Time : 3~7 working days

Packaging Details : 1 piece in 1 carton. 0.2KG/pcs

Product name : 10gb SFP module SR 300m

Distance : 300m, SR

Fiber : LC, duplex, 850nm

Working Temp : 0 ° C + 70 ° C

Feature : 10Gb/s, Hot Pluggable

Power : 3.3V

Contact Now

10G SFP+ Multimode Transceiver For Cisco, Ubiquiti And Other Open Switches

Product Introduction

  • OLYCOM OSPLXG05D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.
  • The OSPLXG05D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams.
  • The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
  • The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
  • The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Features

  • Supports 9.95 to 11.3Gb/s bit rates
  • Hot-Pluggable
  • Duplex LC connector
  • 850nm VCSEL transmitter, PIN photo-detector
  • MMF links up to 300m
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
  • Power Supply :+3.3V
  • Power consumption<1W
  • RoHS compliant

Application

  • 10GBASE-SR/SW Ethernet
  • SONET OC-192 / SDH
  • 10G Fibre Channel

10G Cisco SFP+ Transceiver Multimode LC 850nm 300m DDM 10GBase-SR

Optical Parameters

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λt 840 850 860 nm
RMS spectral width λRMS 4 nm
Average Optical Power Pavg -7.3 -1 dBm 1
Optical Power OMA Poma -1.5 dBm
Laser Off Power Poff -30 dBm
Extinction Ratio ER 3.5 dB
Transmitter Dispersion Penalty TDP 3.9 dB 2
Relative Intensity Noise Rin -128 dB/Hz 3
Optical Return Loss Tolerance 20 dB
Receiver Section:
Center Wavelength λr 840 860 nm
Receiver Sensitivity (OMA) Sen -11.1 dBm 4
Stressed Sensitivity (OMA) SenST -7.5 dBm 4
Los Assert LOSA -30 - dBm
Los Dessert LOSD -12 dBm
Los Hysteresis LOSH 0.5 dB
Overload Sat 0 dBm 5
Receiver Reflectance Rrx -12 dB

FAQ

Q: How long is the lead time?
A: Usually 3-5 days, but need to check when you process orders.

Q: Do you provide OEM service?
A: Yes, we provide OEM service. If you have requirements about customized product, we also provide.

Q: Can I have any discounts?
A: Discounts will be given to repeat orders, regular clients and discount products.

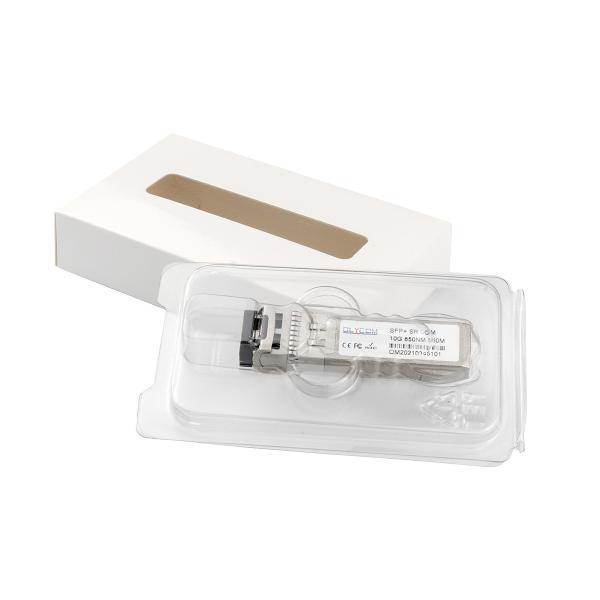

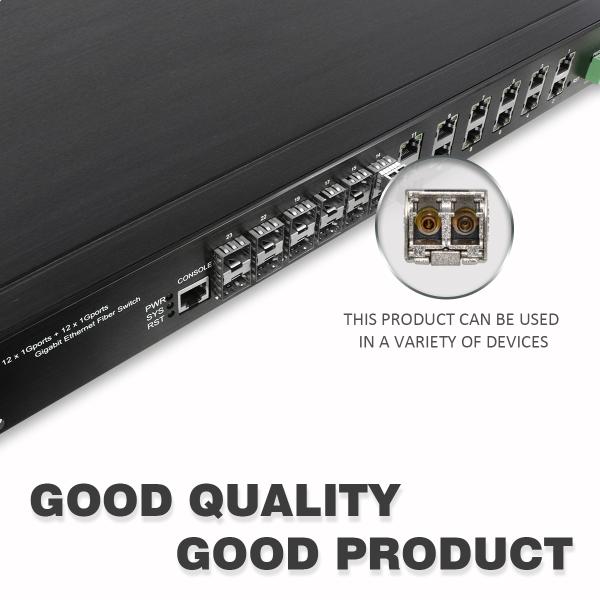

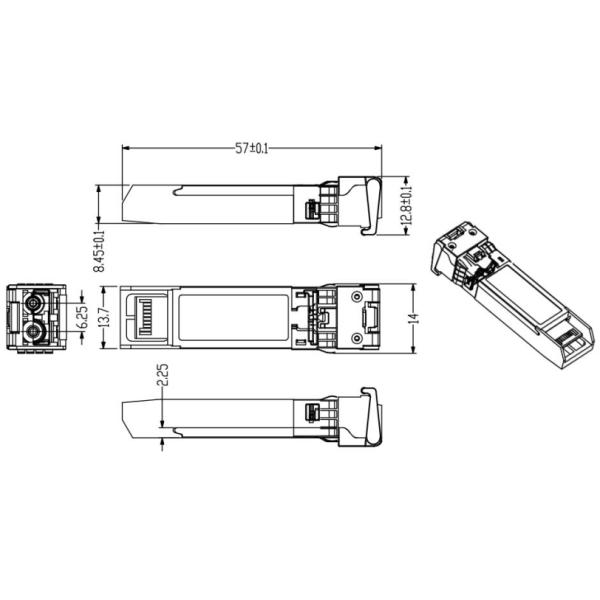

Product Photos

10G Cisco SFP+ Transceiver Multimode LC 850nm 300m DDM 10GBase-SR

10G Cisco SFP+ Transceiver Multimode LC 850nm 300m DDM 10GBase-SR

10G Cisco SFP+ Transceiver Multimode LC 850nm 300m DDM 10GBase-SR
